A great link to some more advanced roof videos. As the post indicates "Yes we can!!"
http://ausaca.blogspot.com/p/roof-object-video-links.html
AutoCAD Architecture | MEP
This blog is dedicated to AutoCAD Architecture & AutoCAD MEP. No Revit, BIM, or other will clutter this site. AutoCAD based products every time, all the time!
Tuesday, April 17, 2012
Wednesday, February 15, 2012
Roof Objects and Roof Slabs
A great post on all you every wanted to know about Roof Objects and Roof Slabs (including gutters and downspouts).
http://www.archidigm.com/classroom/adt_4_development_guide/adt_4_dg_part_8.htm#Roof%20Slab%20Display%20Properties
http://www.archidigm.com/classroom/adt_4_development_guide/adt_4_dg_part_8.htm#Roof%20Slab%20Display%20Properties
Sunday, November 20, 2011
Turning Off "Isolines" in a Section \ Elevation
By default, when you cut a Section or Elevation in AutoCAD Arch./MEP, "Isolines" will display for curved and circular objects (see below picture).
After the jump learn how to fix this issue...
Saturday, October 15, 2011
Section Dimensions Don't Match the Model!!
If you ever model curved or circular structures with AutoCAD Arch. | MEP and have started your company template with the OTB Arch. or MEP template you may run into this issue. Below I have modeled a circular concrete tank and then cut a Section right through the center of the tank. As you can see the inner diameter of the tank is 100'-0" but when I measure the Section it measures 99'-11_1/16". This is NO GOOD!!
After the jump see how to fix this issue...
Monday, July 4, 2011
Hidden Pipes and Valves below Slab or Grade
Have you ever wanted pipes and other mechanical building elements to show as hidden when they are below grade or a floor slab? This can be done by toggling a drawing variable in the 'Options --> MEP Display Control' tab.

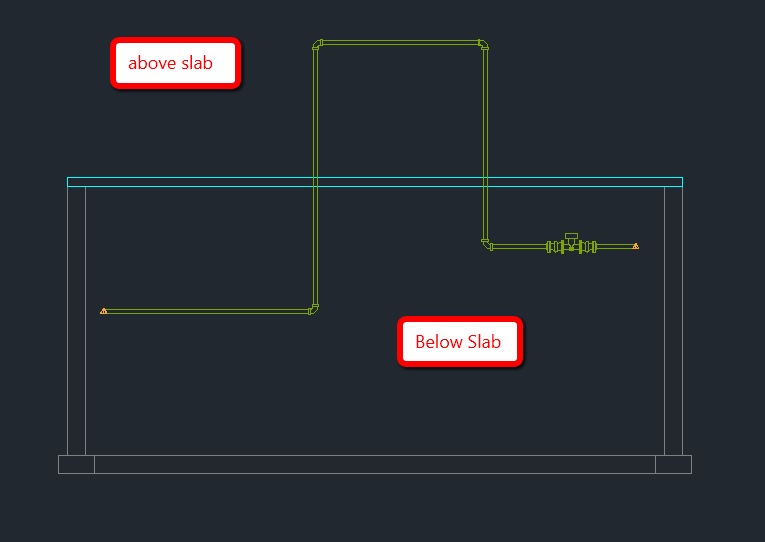

By default in AutoCAD MEP, when you draw something as below (image)...
By default in AutoCAD MEP, when you draw something as below (image)...
Monday, June 27, 2011
Full Depth \ Advanced topics on Architecture & MEP
Another resource for getting in-depth on AutoCAD Architecture & MEP is Autodesk University Online Classes (http://au.autodesk.com/?nd=class_listing). At this link you have 50-100 videos on how-to topics for these two programes and much more. Simply change the search choice to the program you desire and click search. Most classes come with the recorded video, powerpoint, and handout.
Some classes of note:
MP318-1 - Implementing 3D Design on Water and Wastewater Projects
AB114-5 - Breaking Free of the Plan: AutoCAD® Architecture Sections and Elevations
MP318-4 - Creating Electrical Panel Schedules in AutoCAD® MEP
ME316-1V - Smokin' Hot AutoCAD® MEP 2011 Tips
etc...
etc...
Enjoy...
Some classes of note:
MP318-1 - Implementing 3D Design on Water and Wastewater Projects
AB114-5 - Breaking Free of the Plan: AutoCAD® Architecture Sections and Elevations
MP318-4 - Creating Electrical Panel Schedules in AutoCAD® MEP
ME316-1V - Smokin' Hot AutoCAD® MEP 2011 Tips
etc...
etc...
Enjoy...
Thursday, June 23, 2011
MEP Clash Report and Joining Pipes
There are a couple of good posts on CAD Shack: http://cadshack.blogspot.com/search/label/ABS
Two in paticular:
Two in paticular:
AutoCAD MEP Clash Reports
Rejoin Broken Duct and Pipe
